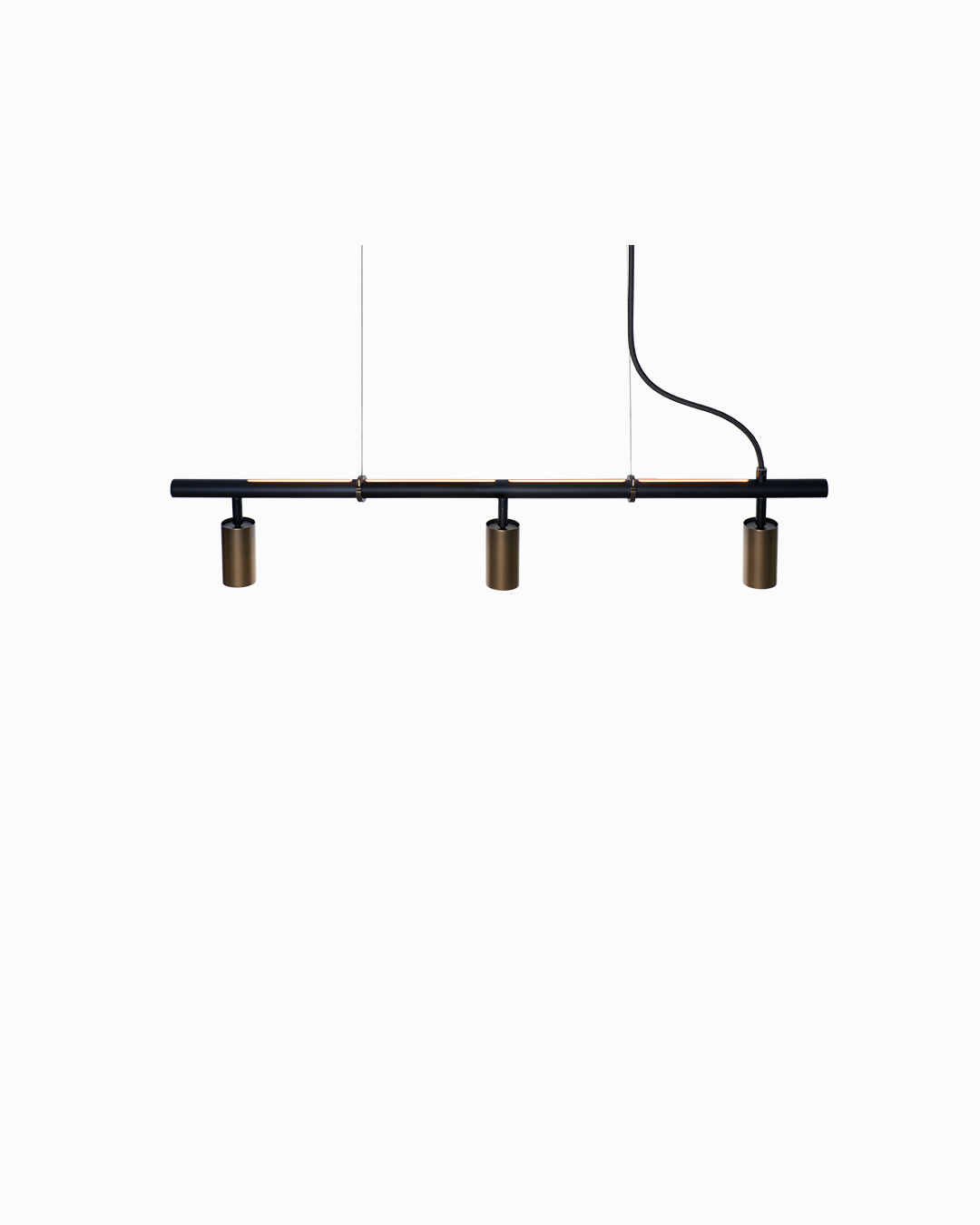

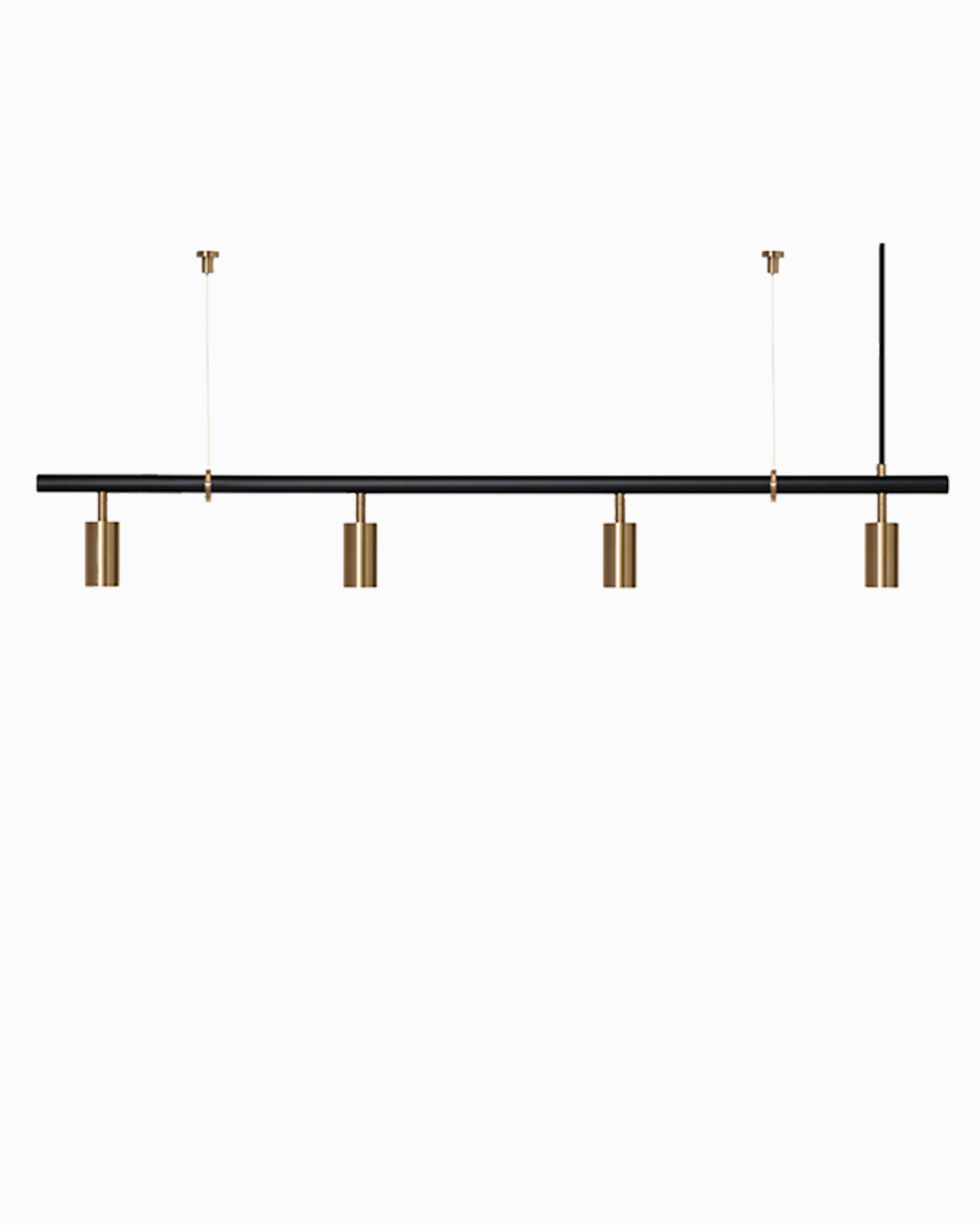

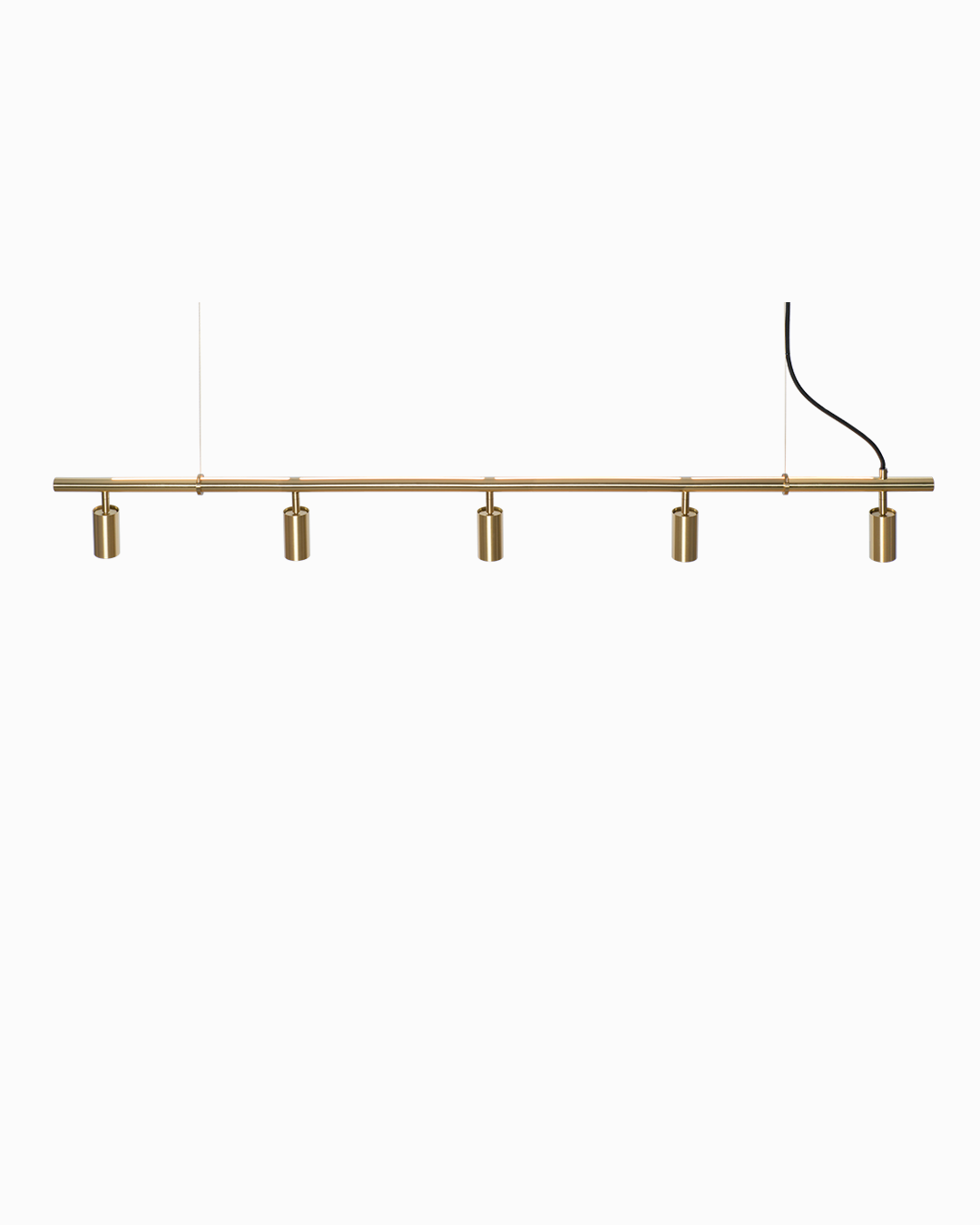

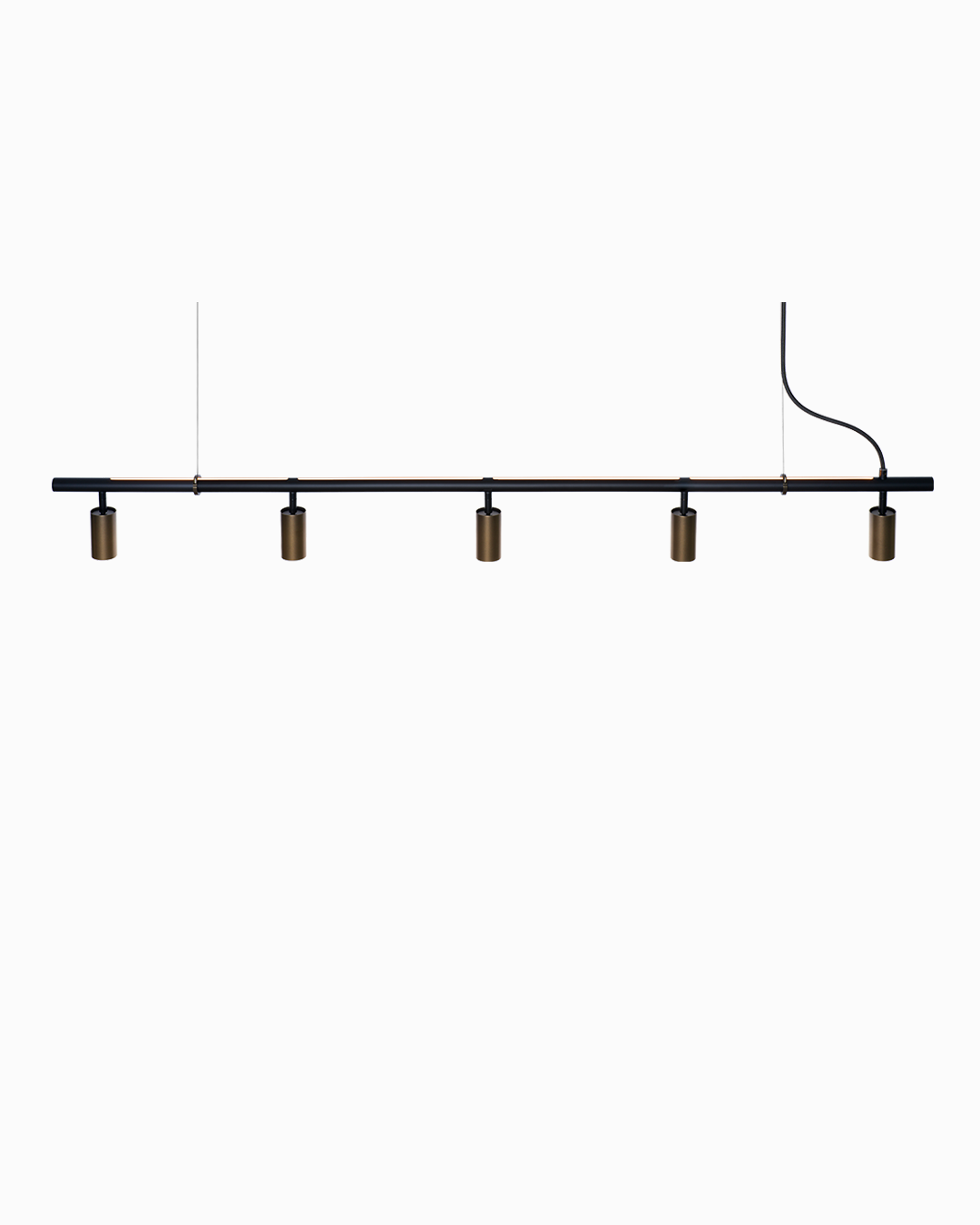

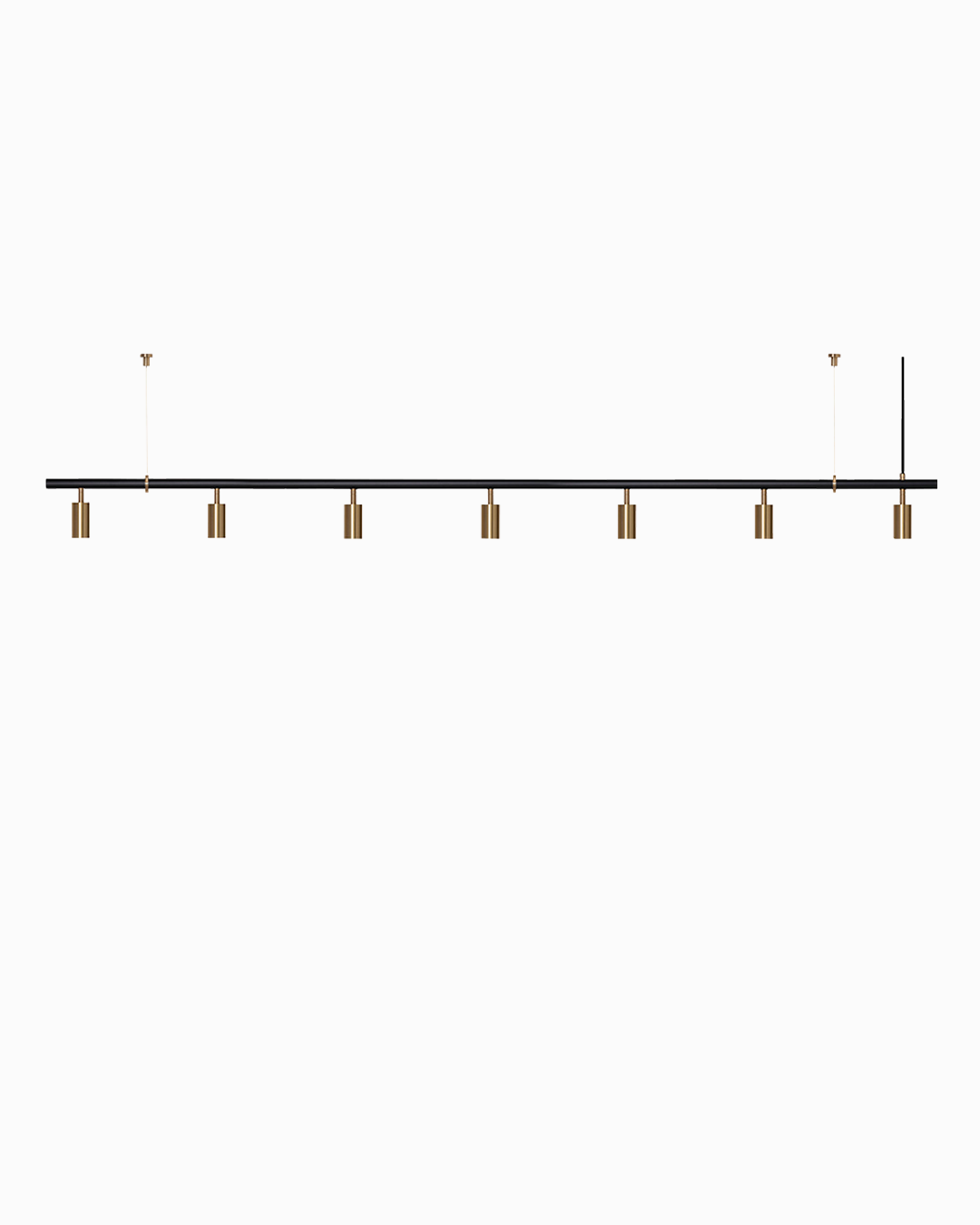

Long John Pendant with Uplight

SPECIFICATIONS

MATERIALS – Brushed clear-lacquered brass, steel or powder-coated steel

CORD (mm) – Black textile L 3700

DIMENSIONS (mm) –

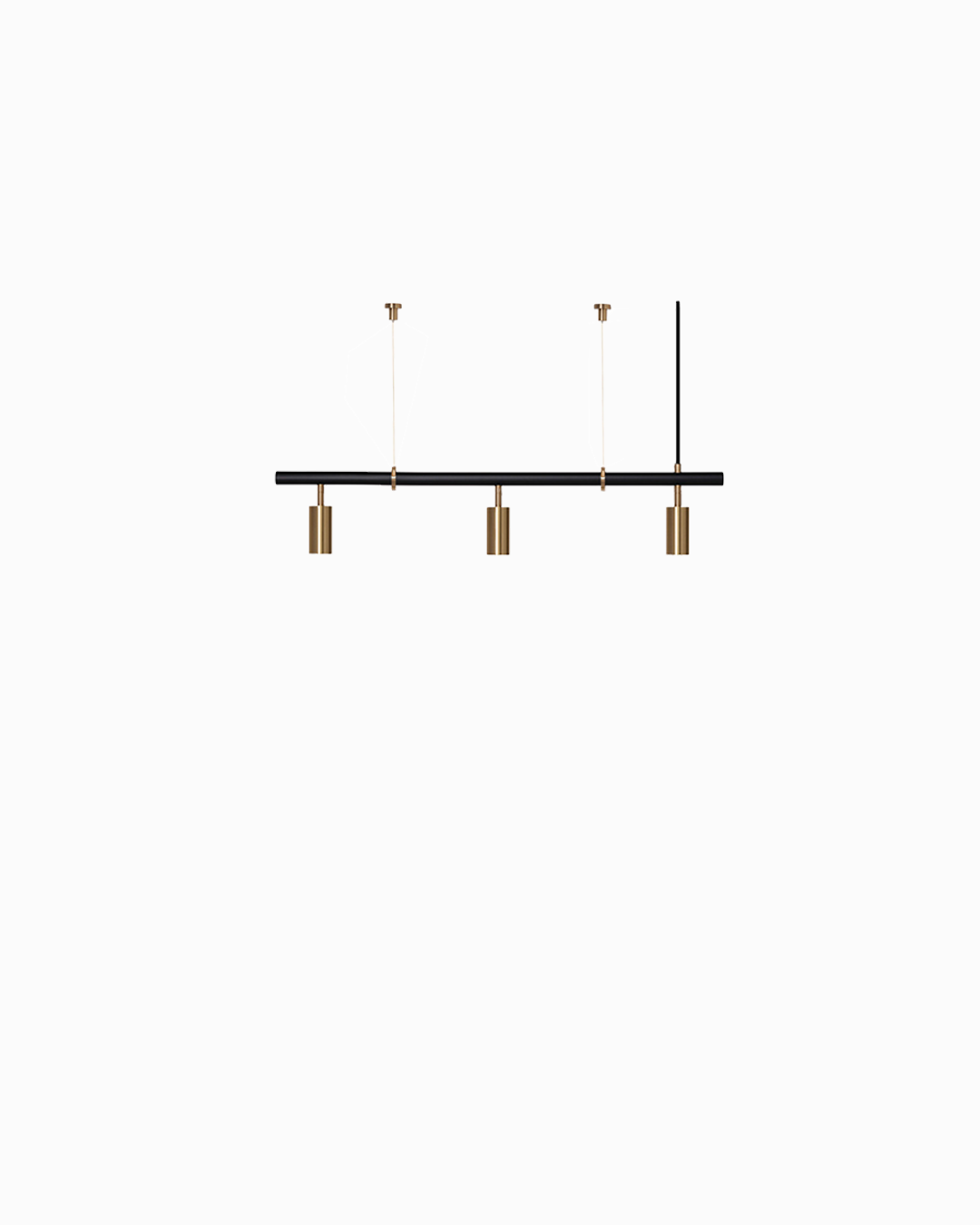

Long John with Uplight 3 – H 170 x W 1000 – SHADE Ø 55 – ROD Ø 30

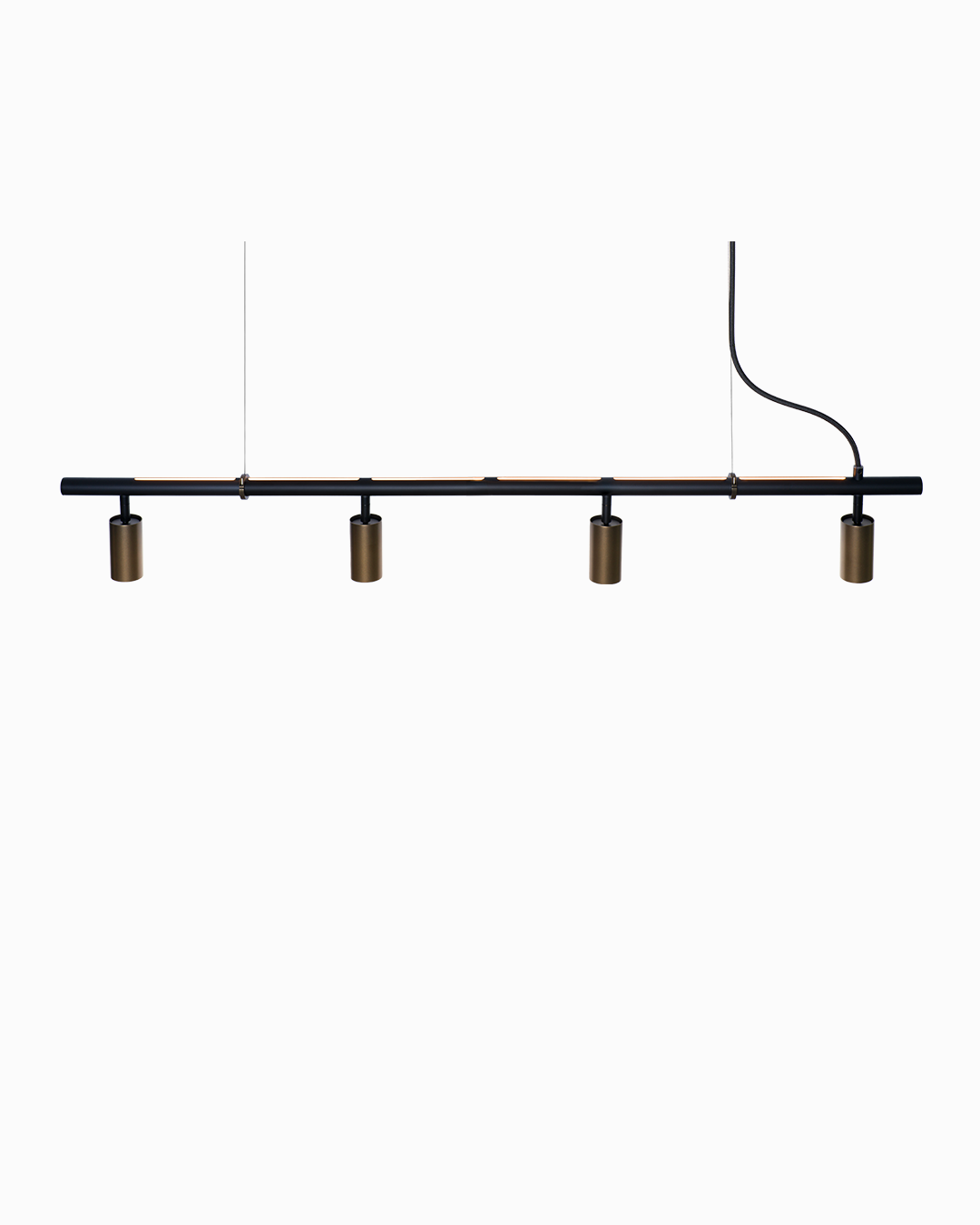

Long John with Uplight 4 – H 170 x W 1400 – SHADE Ø 55 – ROD Ø 30

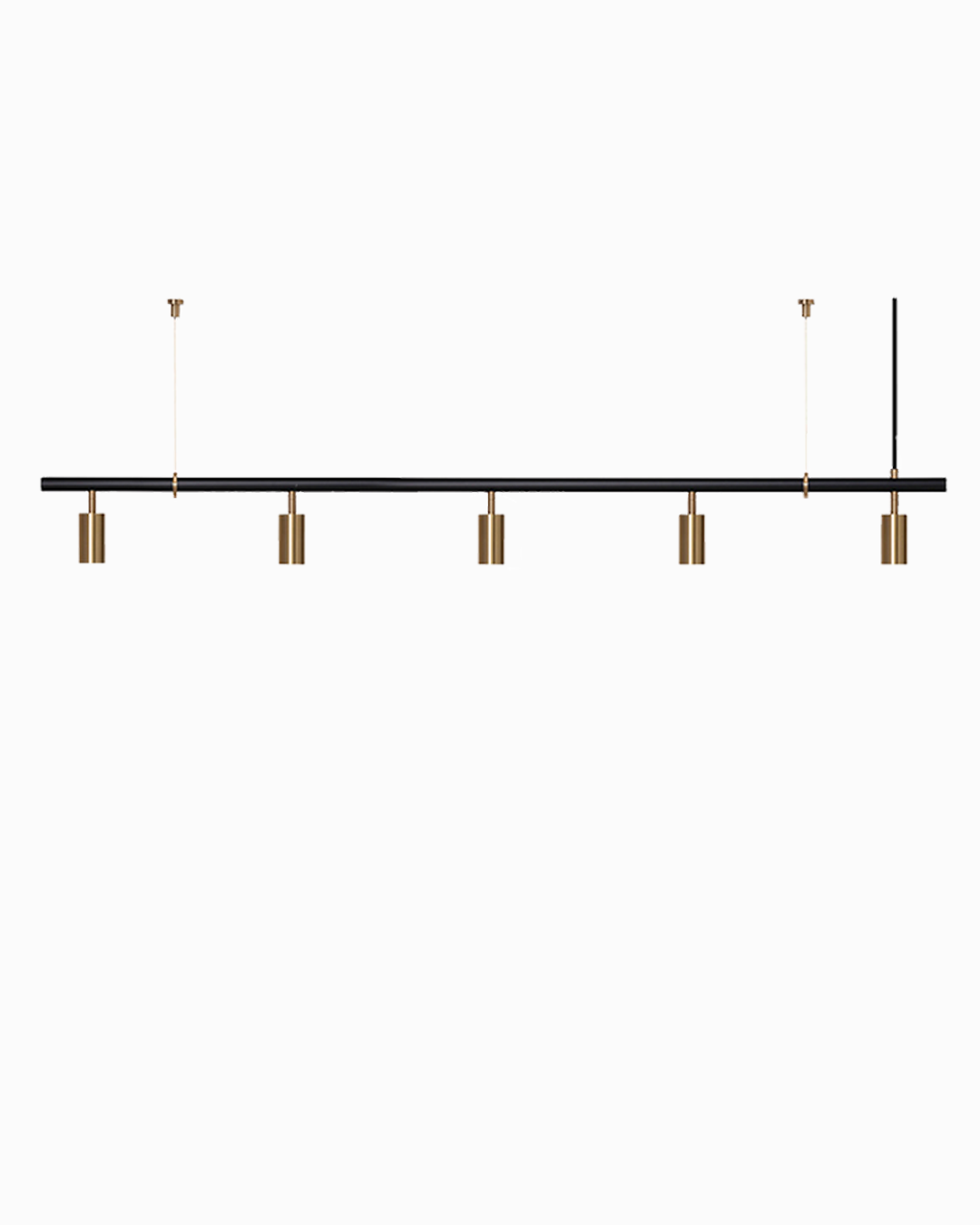

Long John with Uplight 5 – H 170 x W 1800 – SHADE Ø 55 – ROD Ø 30

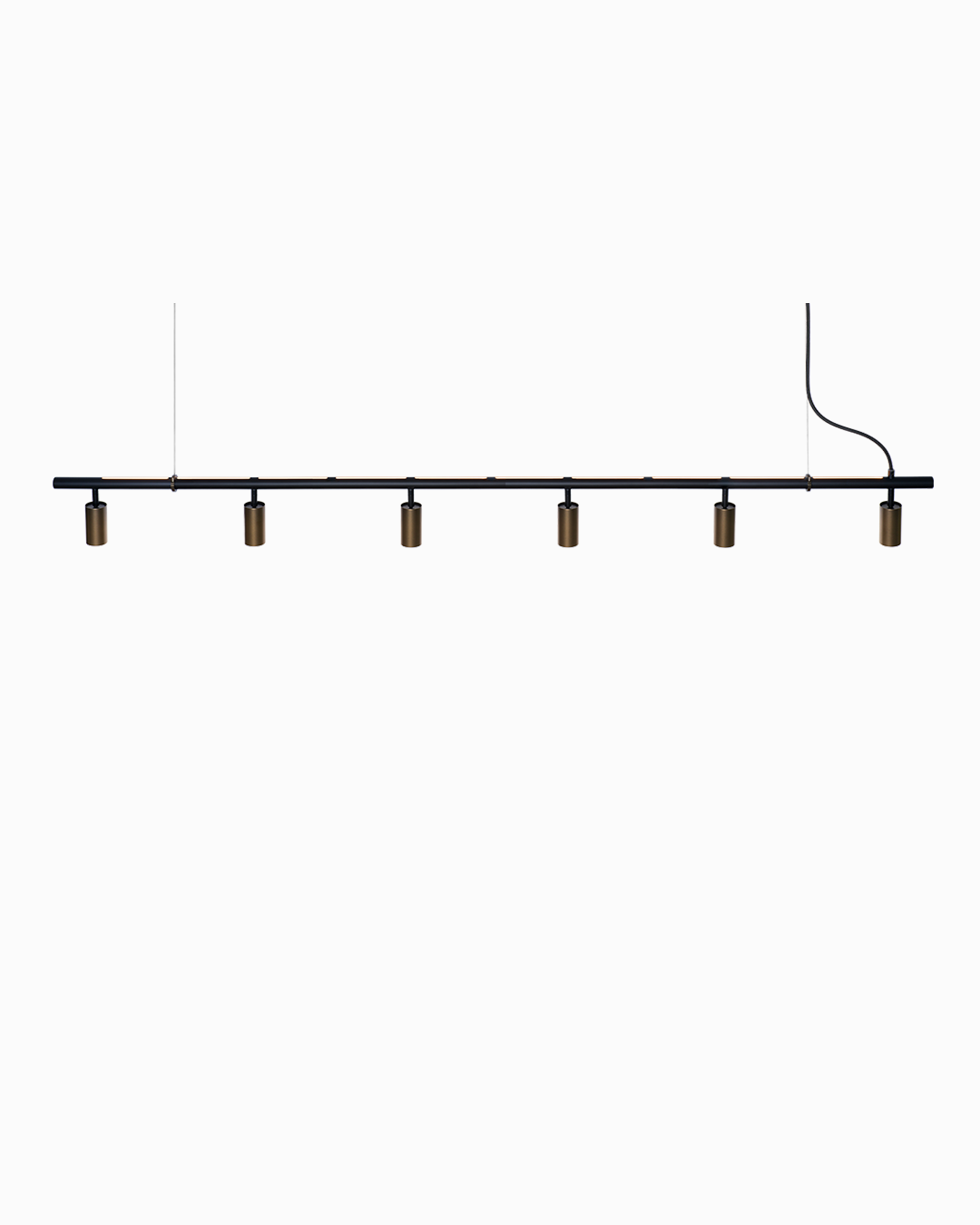

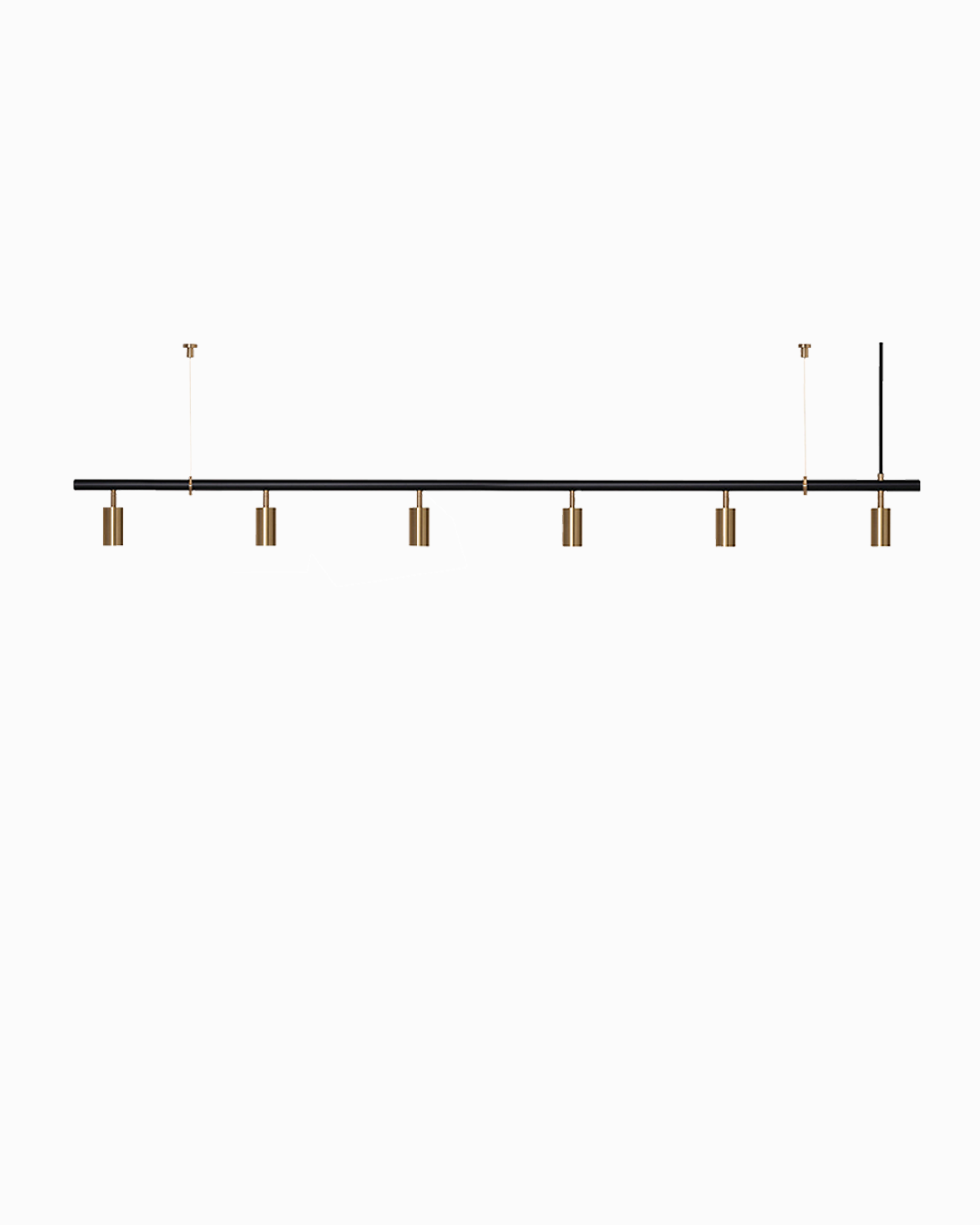

Long John with Uplight 6 – H 170 x W 2200 – SHADE Ø 55 – ROD Ø 30
Long John with Uplight 7 – H 170 x W 2600 – SHADE Ø 55 – ROD Ø 30

WEIGHT (kg) – 2,4 / 3,0 / 3,6 / 4,2 / 4,8

ENVIRONMENT – Indoor

SWITCH – No switch

BULB HOLDER – GU10 & INTEGRATED LED

LIGHT SOURCE (Included*) –
Long John with Uplight 3 – 3 x 6,5 W DIMMABLE LED + 1 x 11 W INTEGRATED DIMMABLE LED – 2700 K
Long John with Uplight 4 – 4 x 6,5 W DIMMABLE LED + 1 x 17 W INTEGRATED DIMMABLE LED – 2700 K
Long John with Uplight 5 – 5 x 6,5 W DIMMABLE LED + 1 x 22.5 W INTEGRATED DIMMABLE LED – 2700 K
Long John with Uplight 6 – 6 x 6,5 W DIMMABLE LED + 1 x 28.5 W INTEGRATED DIMMABLE LED – 2700 K
Long John with Uplight 7 – 7 x 6,5 W DIMMABLE LED + 1 x 34 W INTEGRATED DIMMABLE LED – 2700 K

*The included GU10 light bulbs come packaged with the lamp and can be installed easily using the suction cup provided in the box.

MAX (W) –
Long John with Uplight 3 – 3 x 8 W + 1 x 11 W INTEGRATED LED
Long John with Uplight 4 – 4 x 8 W + 1 x 17 W INTEGRATED LED
Long John with Uplight 5 – 5 x 8 W + 1 x 22.5 W INTEGRATED LED
Long John with Uplight 6 – 6 x 8 W + 1 x 28.5 W INTEGRATED LED
Long John with Uplight 7 – 7 x 8 W + 1 x 34 W INTEGRATED LED

CLASS – 1

IP – 20

DESIGN BY – Niclas Hoflin

DESIGN YEAR – 2024

Specification Sheet

CUSTOMIZATION

Customize this fixture with finishes from our library, including

70+ color finishes from the RAL and NCS ranges
Five metal finishes:
Brass and steel - brushed, clear lacquered, or unlacquered
Raw polished copper
Gunmetal finish on brushed steel
Chrome finish on brushed steel

Custom color matching is also available upon request.

Design Customization:

Custom lengths up to 20meters + are available. Send us your requirements.
Custom spotlight placement and number can be accommodated.
Various shapes (square, oval, circular) are available.
Sloped ceilings - should you require an adjustable ceiling cup for a chandelier or pendant simply let us know.

DALI drivers - available upon request, for external connection only. Should an integration be required let us know and we will look into the possibility.

Please reach out to us at contact@rubn.com for any inquiries.

INSTALLATION

How to install - GU10

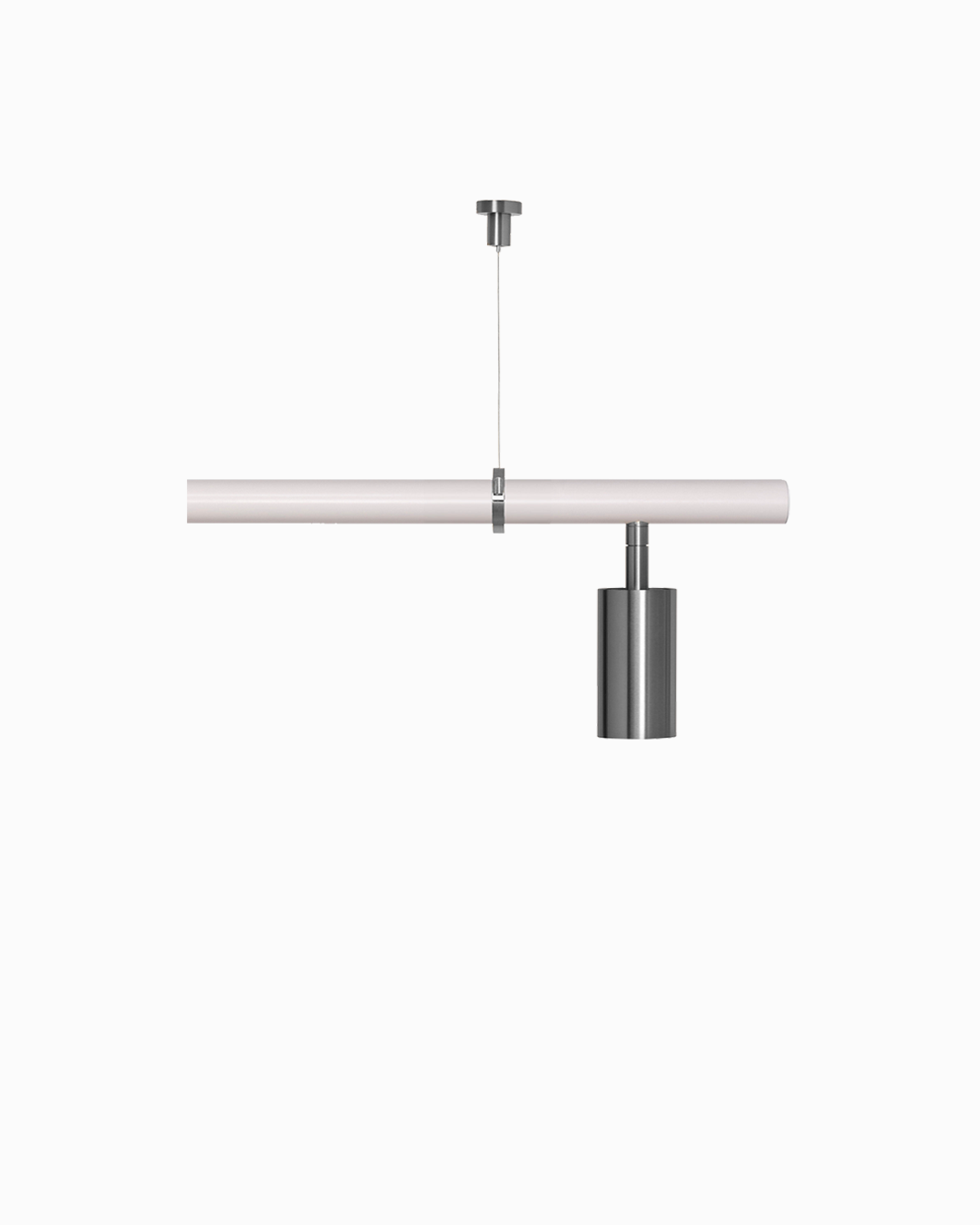

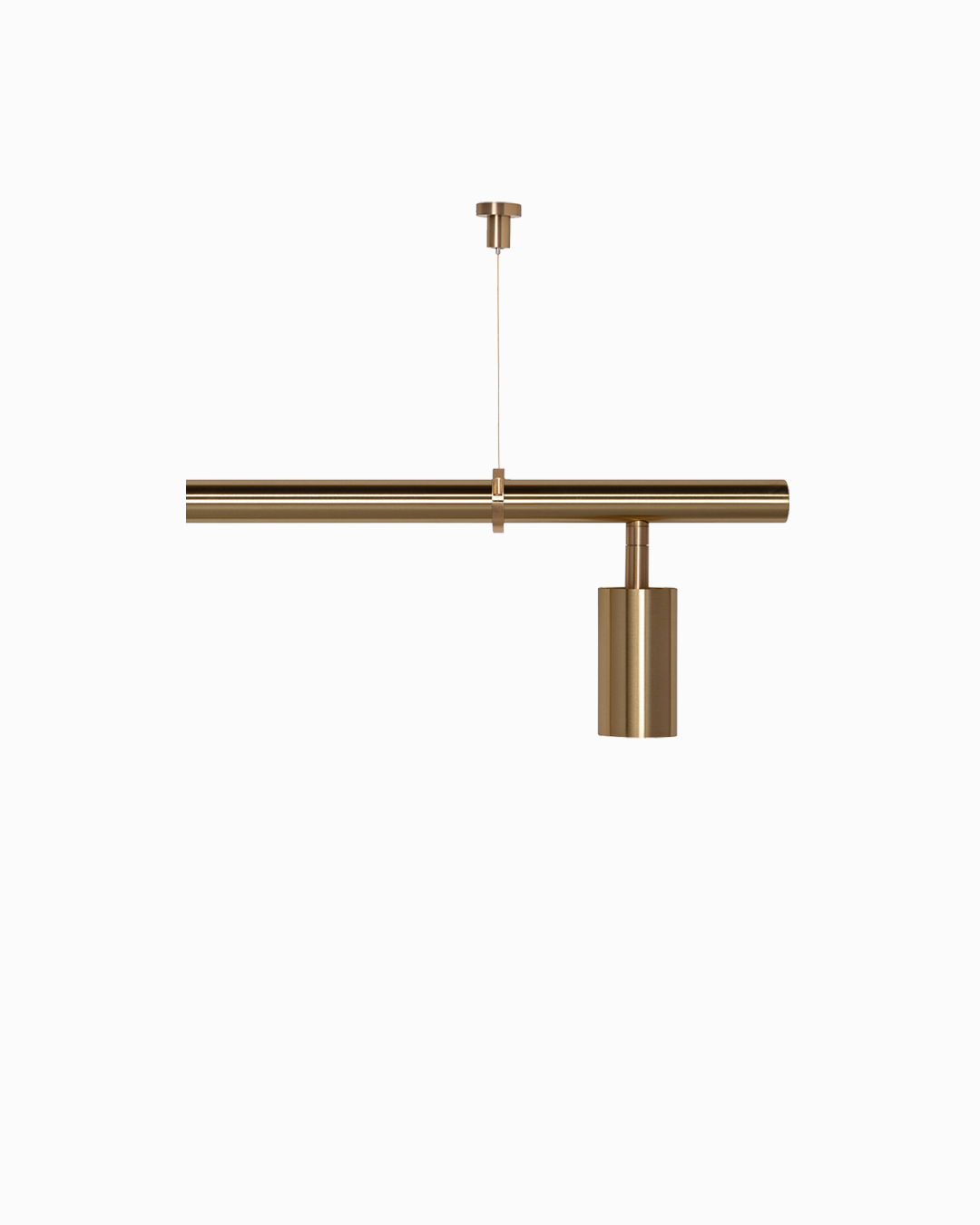

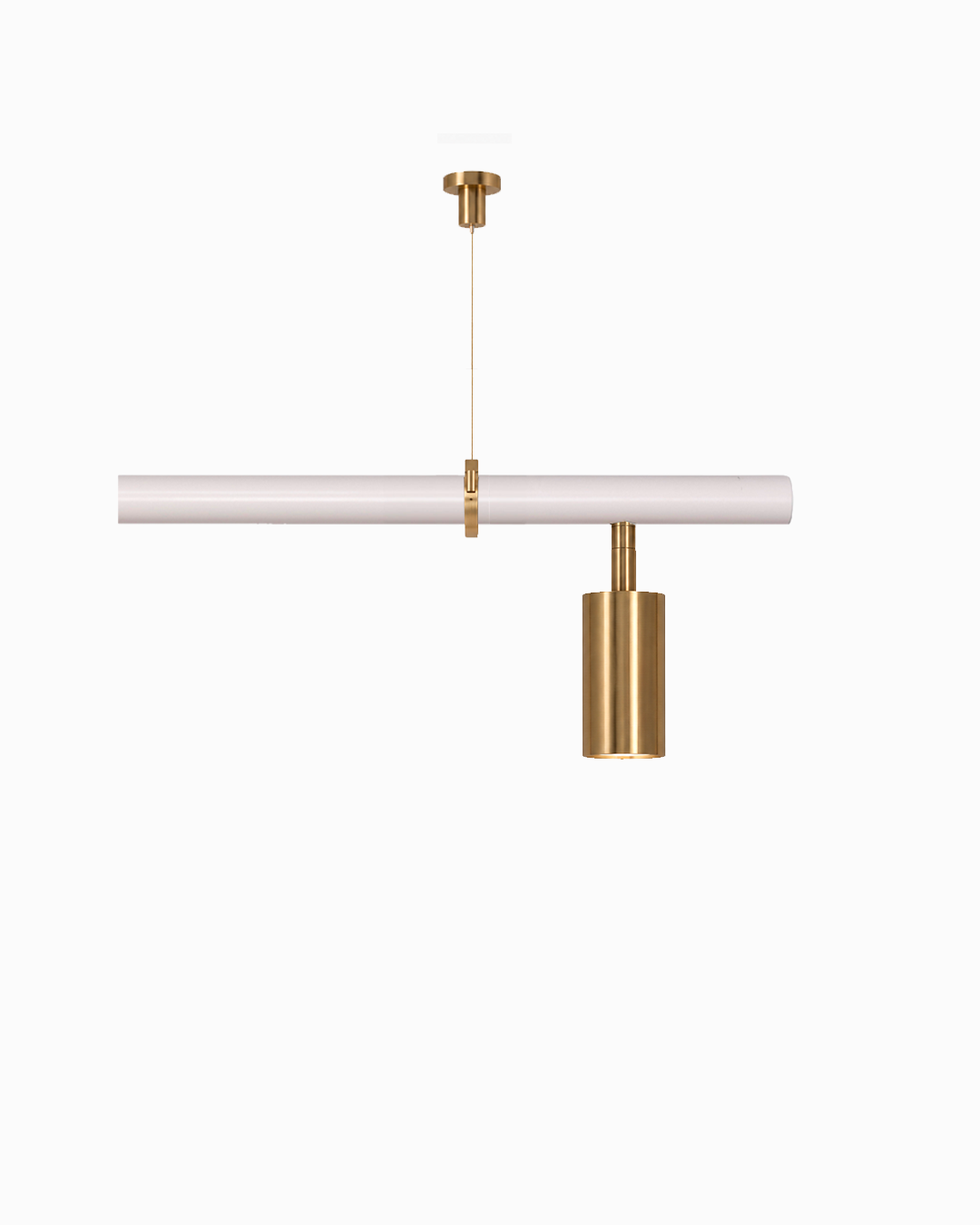

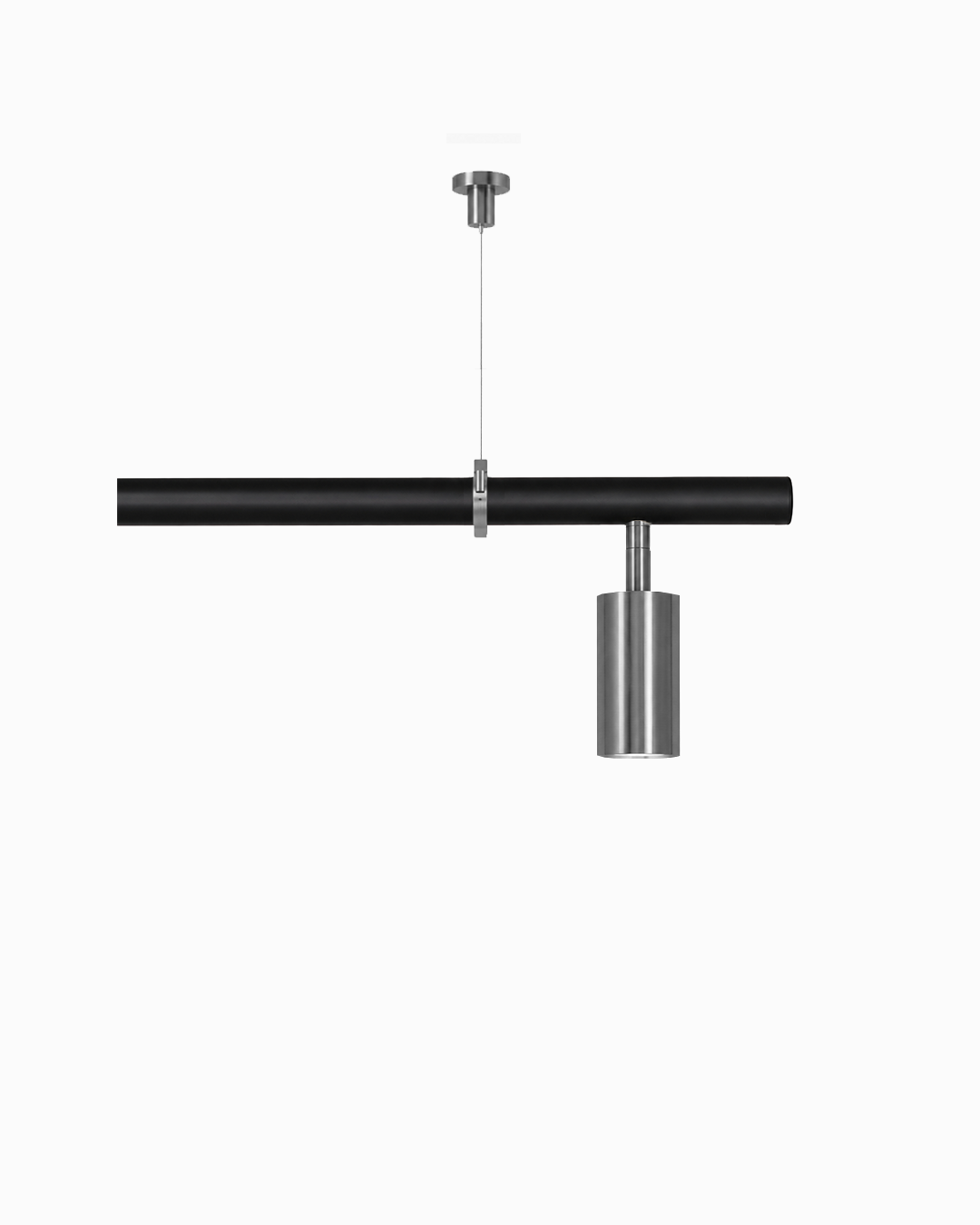

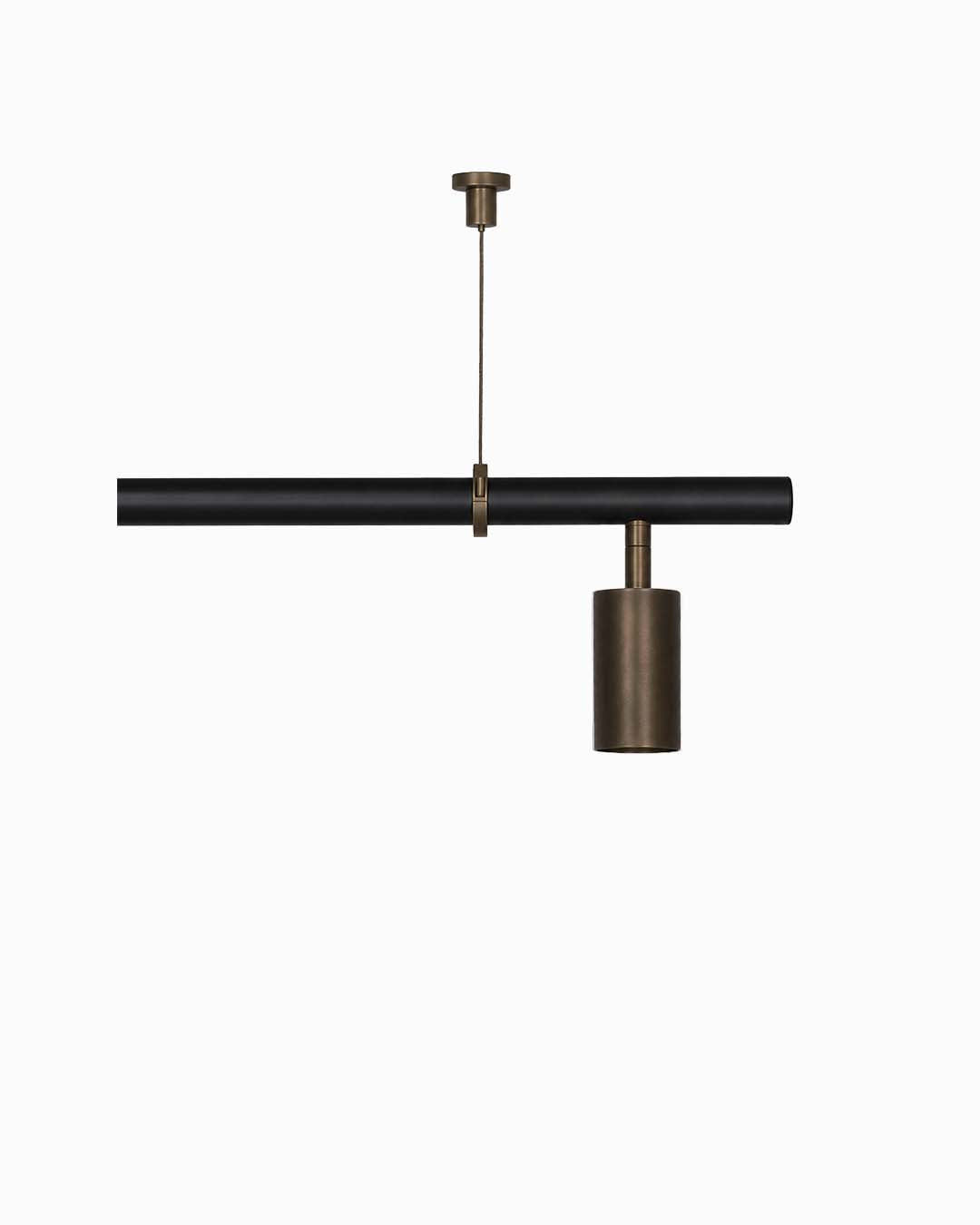

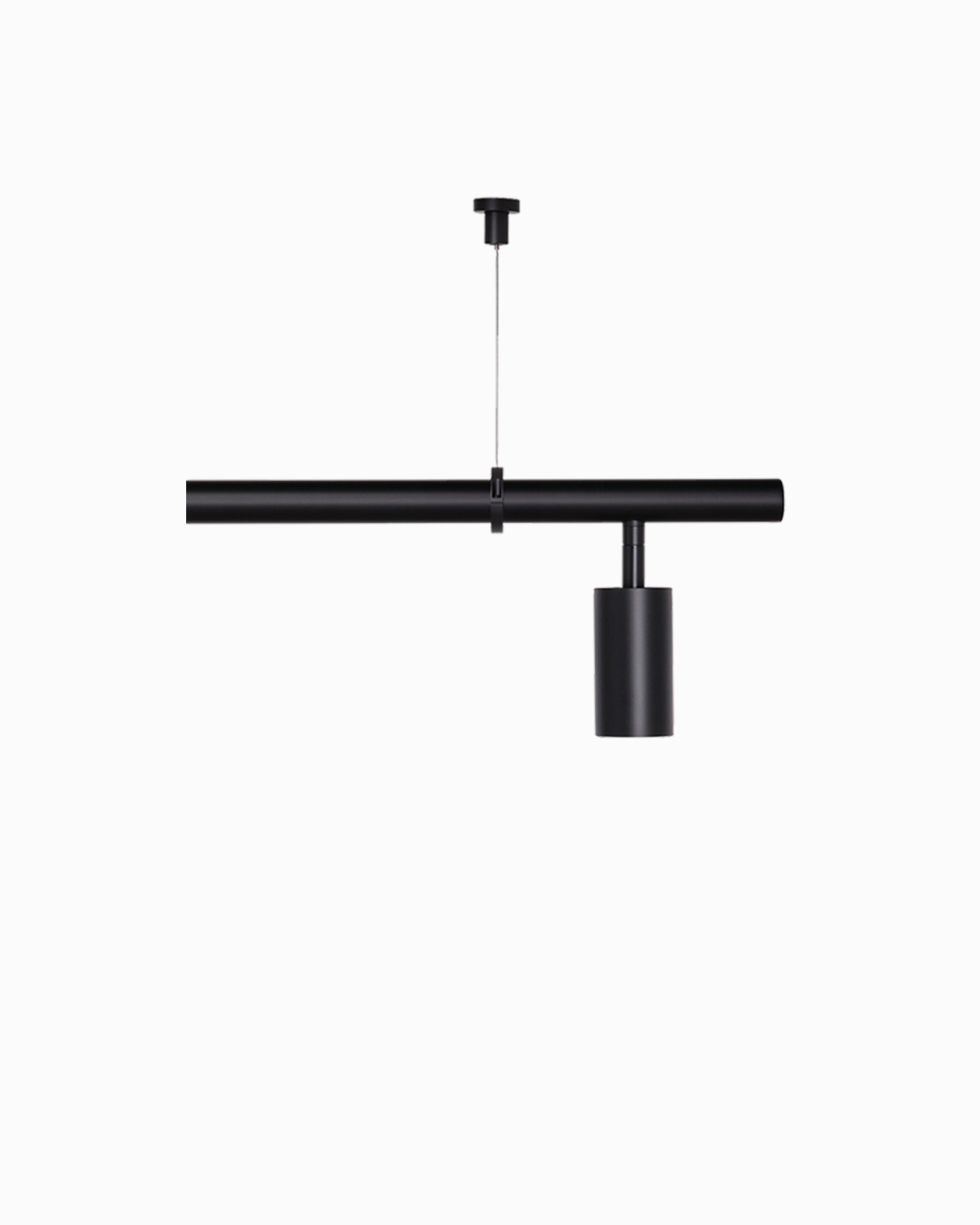

How to install - Wire Suspension

DOWNLOADS

Available upon request - kindly reach out to contact@rubn.com

What type of light bulb is required?

This fixture uses a GU10 (Downlight) LED light bulb and integrated LED light source (Uplight). We include the recommended 2700K bulb with the fixture.

GU10 light bulbs are widely available, online and in stores. If preferred, replacement bulbs can also be purchased directly from us by contacting contact@rubn.com.
The integrated LED is designed for long lifetime use and cannot be replaced by the user. If service or replacement is ever needed, please contact us at contact@rubn.com.

Please refer to the “Specifications” section for full light bulb details and technical information.

For US orders, please note that the light bulb is not included, as fixtures are supplied for a 230V grid. In this case, the bulb must be sourced locally, so we recommend checking availability in your region before ordering.

How should I care for my RUBN lamp?

Care depends on the material and finish of your lamp. For most finishes, regular dusting with a soft microfiber cloth is sufficient. Avoid sprays, detergents, or abrasive cleaners.

Unlacquered brass and copper may develop a natural patina over time and can be polished if desired.

Glass globes can be removed and cleaned with mild soap and water, while leather details should be treated with a suitable leather conditioner.

Always refer to the product page for correct bulb specifications.

Is this lamp dimmable?

For the Long John with Uplight, the integrated LED uplight is supplied with a dedicated 24V DC driver and must always be connected through this driver. The uplight and downlight can be connected either together or separately to a dimming system, depending on the desired setup. Connecting the uplight directly to mains power without the supplied driver will damage the LED.

An external DALI driver can also be provided upon request.

We always recommend consulting a certified electrician prior to installation.
