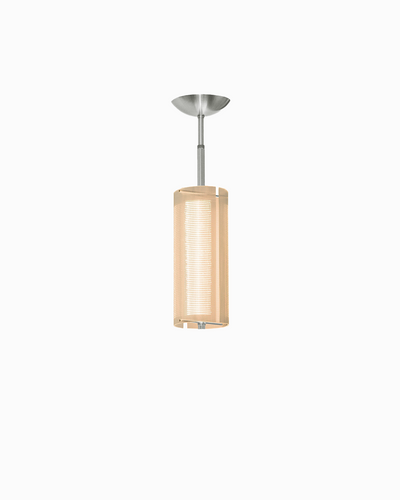

Atlas Chandelier

SPECIFICATIONS

MATERIALS – Brushed clear-lacquered steel and float glass

CORD (mm) – No

WEIGHT (kg) –

FIXED:

3,2 / 6,4 / 9,6 / 12,8

TELESCOPE:

3,7 / 7,4 / 11,1 / 14,8

DIMENSIONS (mm) –

SHADE – H450 x Ø180 mm

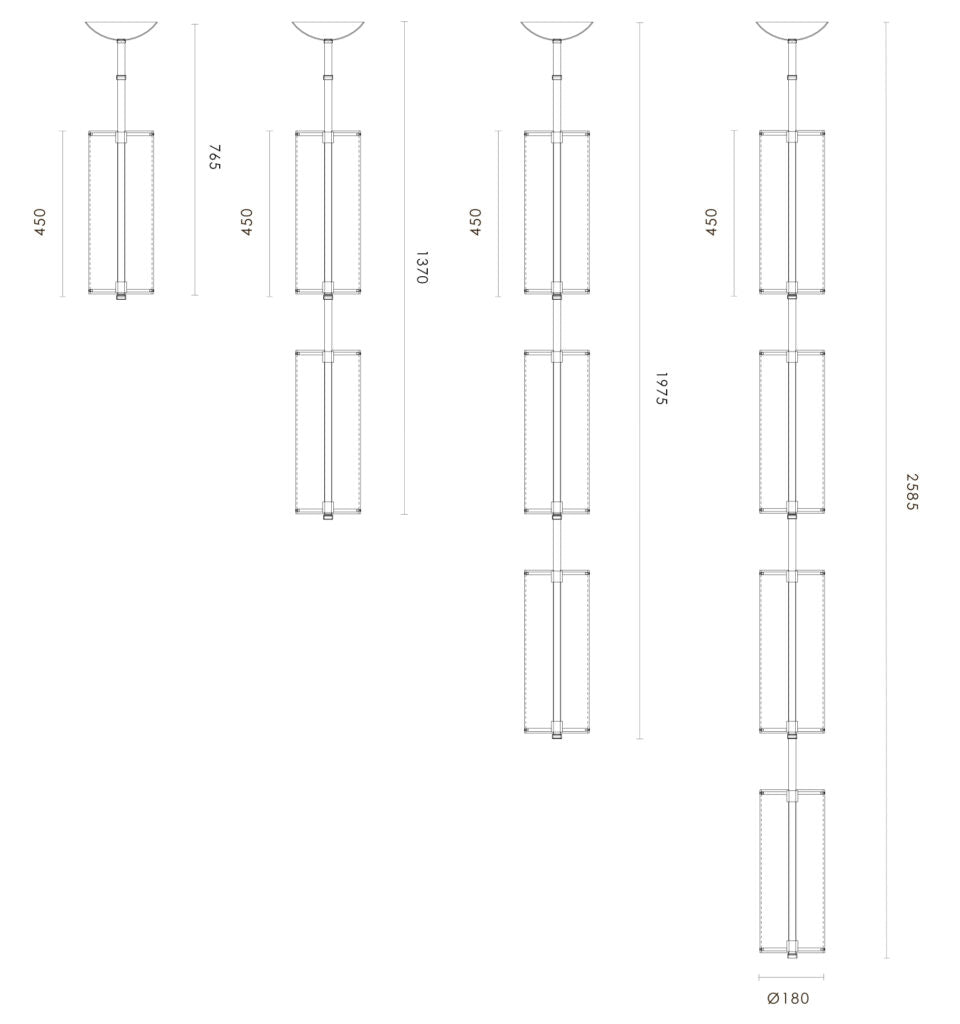

FIXED:

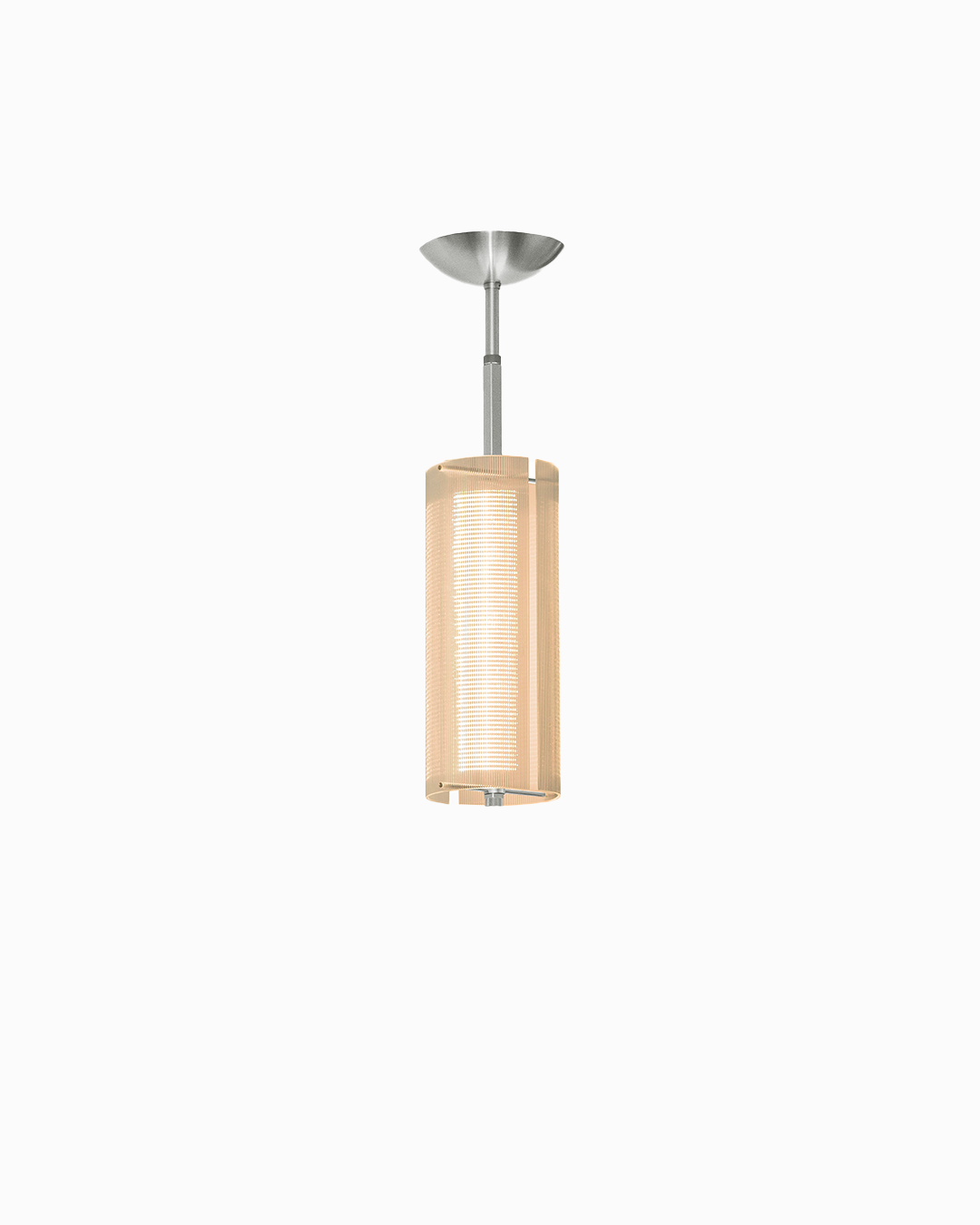

Atlas 1: H 765 mm x Ø 180 mm

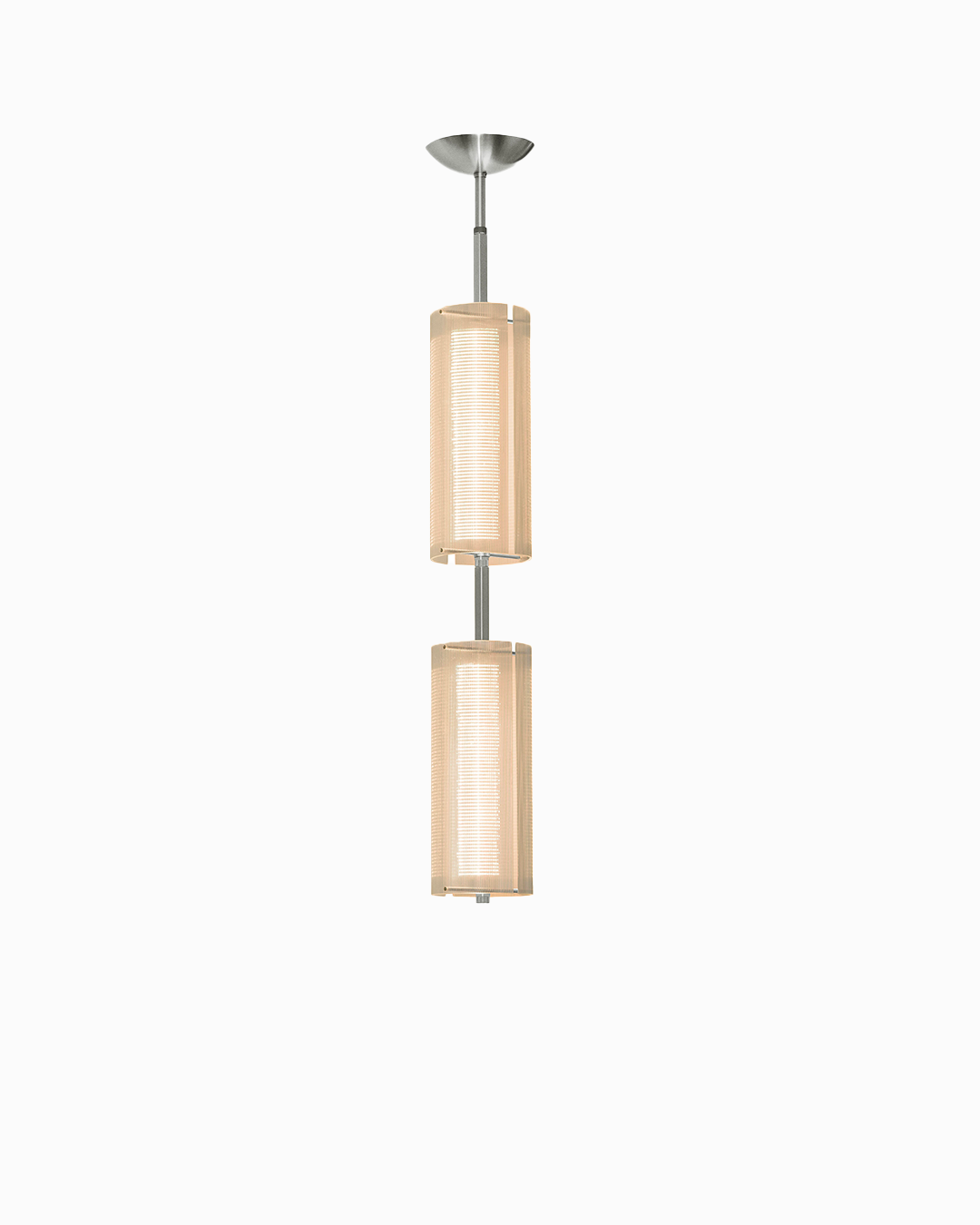

Atlas 2: H 1370 mm x Ø 180 mm

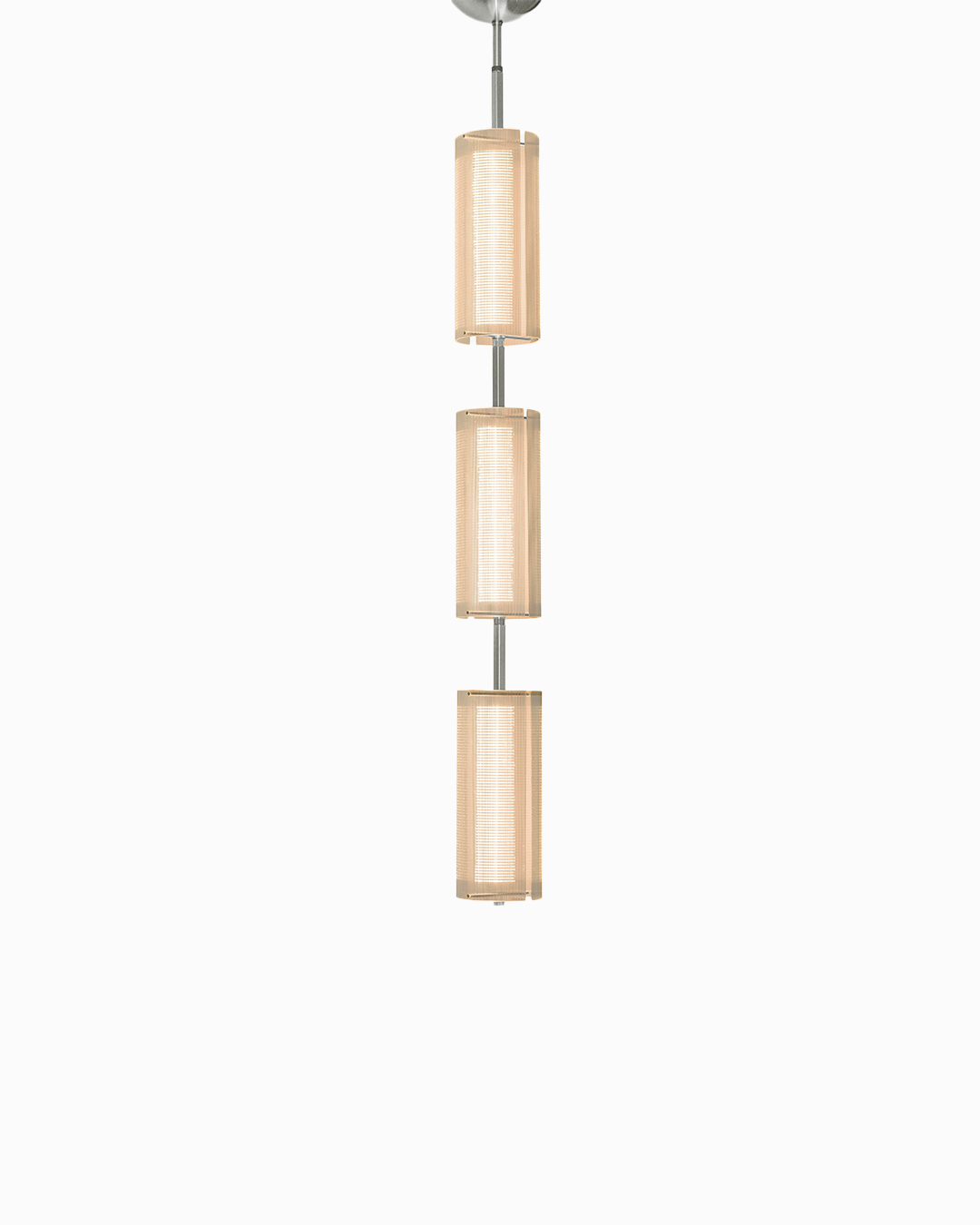

Atlas 3: H 1975 mm x Ø 180 mm

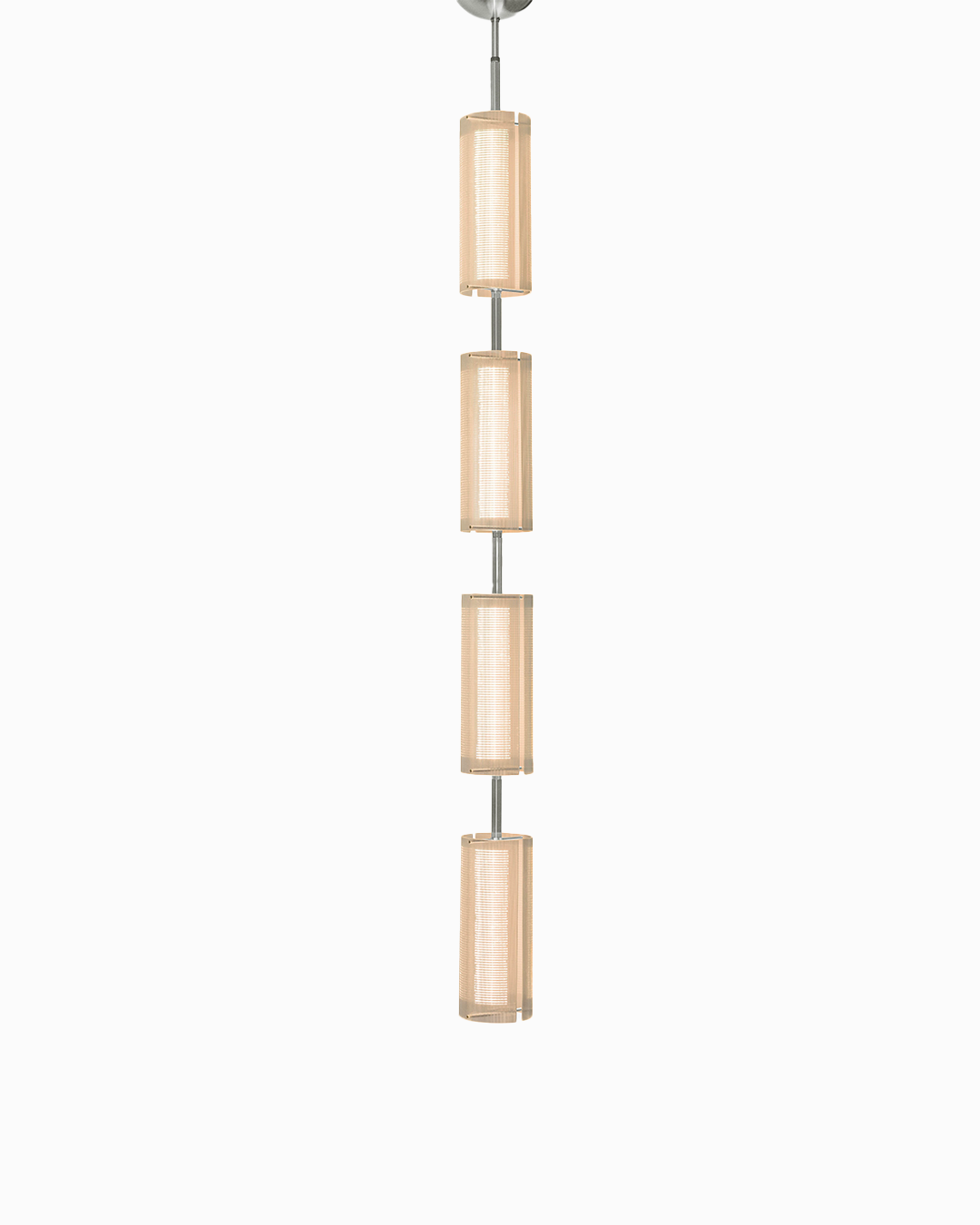

Atlas 4: H 2585 mm x Ø 180 mm

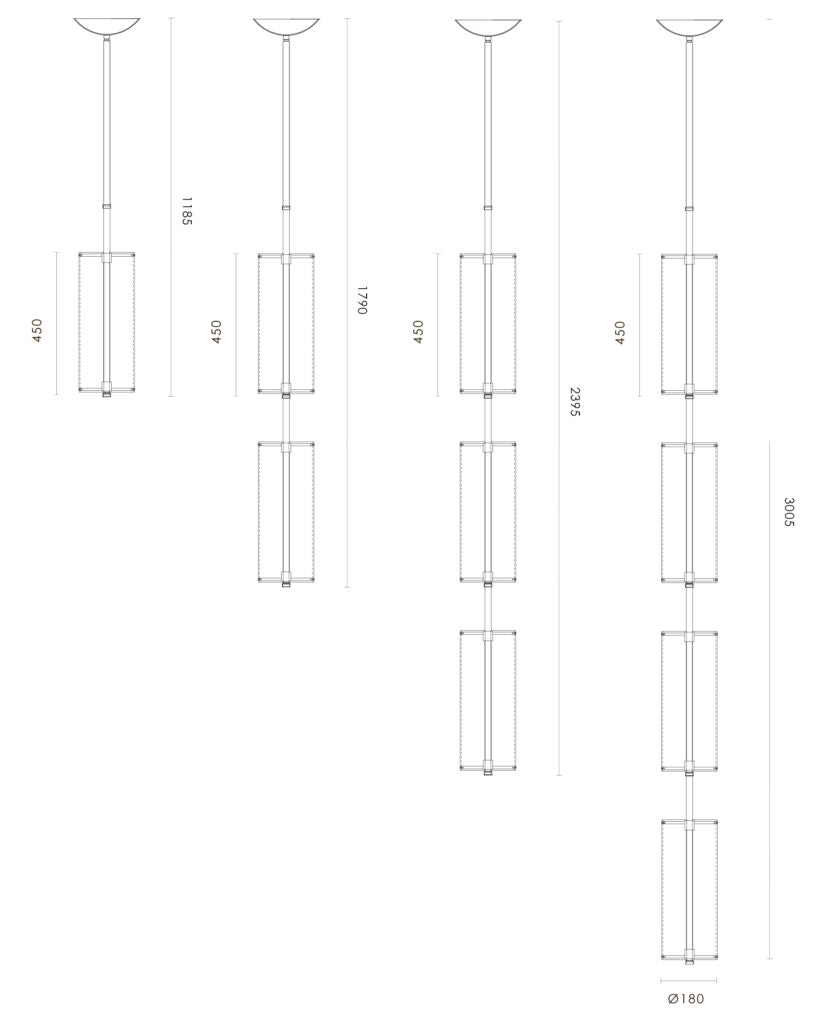

TELESCOPE:

Atlas 1: H 1185-1655 mm x Ø 180 mm
Atlas 2: H 1790-2260 mm x Ø 180 mm
Atlas 3: H 2395-2865 mm x Ø 180 mm
Atlas 4: H 3005-3475 mm x Ø 180 mm

ENVIRONMENT – Indoor

SWITCH – No

BULB HOLDER – No

LIGHT SOURCE (integrated) –

Atlas 1: 12 W Dimmable LED – 2400 K
Atlas 2: 24 W Dimmable LED – 2400 K
Atlas 3: 36 W Dimmable LED – 2400 K
Atlas 4: 48 W Dimmable LED – 2400 K

MAX (W) –

Atlas 1: 12 W Dimmable LED
Atlas 2: 24 W Dimmable LED
Atlas 3: 36 W Dimmable LED
Atlas 4: 48 W Dimmable LED

VOLTAGE – 230 / 240

CLASS – 2

IP – 20

DESIGN BY – Niclas Hoflin

DESIGN YEAR – 2025

Specification Sheet (Fixed)

Specification Sheet (Telescope)

CUSTOMIZATION

Customize this fixture with finishes from our library, including

70+ color finishes from the RAL and NCS ranges
Five metal finishes:
Brass and steel - brushed, clear lacquered, or unlacquered
Raw polished copper
Gunmetal finish on brushed steel
Chrome finish on brushed steel

Custom color matching is also available upon request.

Design customisation:

Height adjustment - whether the fixture needs to be shorter, longer, or at a specific fixed height, send us your drawing or height requirements and we will do our best to help you.
Sloped ceilings - should you require an adjustable ceiling cup for a chandelier or pendant simply let us know.

DALI drivers - available upon request, for external connection only. Should an integration be required let us know and we will look into the possibility.

Please reach out to us at contact@rubn.com for any inquiries.

INSTALLATION

Installation Instruction - Telescope Ceiling Mount

DOWNLOADS

Available upon request. Please reach out to contact@rubn.com.

What type of light bulb is required?

This fixture features an integrated LED light source built into the design and does not require a separate light bulb. The LED is included with the fixture.

The integrated LED is designed for long lifetime use and cannot be replaced by the user. If service or replacement is ever needed, please contact us at contact@rubn.com.

Please refer to the “Specifications” section for full technical details.

For US orders, please note that fixtures are made for the 230V EU grid.

How should I care for my RUBN lamp?

Care depends on the material and finish of your lamp. For most finishes, regular dusting with a soft microfiber cloth is sufficient. Avoid sprays, detergents, or abrasive cleaners.

Unlacquered brass and copper may develop a natural patina over time and can be polished if desired.

Glass globes can be removed and cleaned with mild soap and water, while leather details should be treated with a suitable leather conditioner.

Always refer to the product page for correct bulb specifications.

What is the difference between a fixed and adjustable chandelier?

A fixed chandelier is made with a set drop height that cannot be adjusted during installation. The total height is predetermined when the fixture is manufactured.

An adjustable chandelier features a telescopic ceiling mount or adjustable rod, allowing the hanging height to be extended or shortened during installation. This provides greater flexibility for different ceiling heights and room settings.

The available height range varies depending on the model. Please feel free to contact us if you would like the exact measurements for a specific chandelier.
